LICHUAN® benigne excipe te ad Lupum 57 Series 2 Phase Nema 23 Clausa Loop Stepper Motor Series ex officina nostra. Fructus nostri CE certificati sunt et nunc magna copia inventarii officinas habent. Factory Lichuan plus quam XIV annorum experientiam productionis habent. Adsunt OEM&ODM, Nos tibi bona opera et officinas discounted pretia praebebimus. Distributores magis grati sumus ut LICHUAN iungamus.

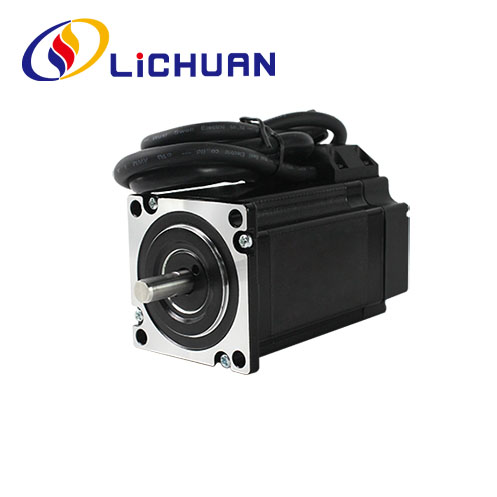

57 Series 2 Phase Nema 23 Loop Stepper Motor clausus, usus materiae rudis et summus vexillum permanentis magnetis siliconis chalybis, cum 1000-linea alta praecisione encoder, omnino superabis gressus motrices apertae ansarum problematum, dum signanter augere motorem altum celeritatem faciendi, Ut facilius traditum gradatim coegi progressio upgrade, sumptus reductionem comparatus servo motori ad reducendum plus quam 50%. Motor longitudo 76mm~ 134mm, torquatus range: 1N.m~3.5N.m, scapus diametri motoris 8mm. 57 series 2 phase Nema23 clausus ansa motoris stepper clausa esse potest pro 4 speciei exactoris: RS485. Canopen. Ethercat. Pulsus imperium regentibus traderent.

Electrica euismod lorem

Item	Specifications
Gradum Angulum Accuratio	±5% (Gradus plenus)
Resistentia Accuratio	±10%(20℃)
Inductio Accuratio	±20% (1KHZ)
Temperatura Surge	80℃ maxa (vena, 2 phasis potestas in)
Ambientium, temperatus	-20℃~*50℃
Resistentia Insulation	100MQMin 500VDC
Dielectrica Fortitudo	500V AC 1 minutum
Concessum radialis Locus	0.02mm Max. (450gload)
Licitum mitte mitte Lond	0.08mm Max. (450gload)
Radialis Max Locus	130N(20mm ex facie langionis)
Tela Max Locus	30N

Series	Gradus Angulus (")	Longitudo (mm)	Tenentes Torquem(N.m)	Phase Current(A)	Phase Resistentia (Q)	Phase Inductione (mH)	Gyratorius Inertia(g.cm²)	Pondus (kg)	Encoder Consilium(PPR)
LC86H260	1.8	82	3.0	6.0	0.3	1.6	1100	2.0	1000
LC86H268	1.8	90	3.5	6.0	0.3	2.2	1400	2.2	1000
LC86H280	1.8	105	4.5	6.0	0.3	3.4	1800	2.5	1000
LC86H298	1.8	123	6.5	6.0	0.5	4.3	2800	3.3	1000
LC86H2114	1.8	140	8.0	6.0	0.5	3.6	2800	4.0	1000
LC86H2128	1.8	155	10	7.5	0.4	4.6	4200	4.5	1000
LC86H2150	1.8	176	12	7.5	0.5	4.7	4300	5.5	1000

Superius sunt producta repraesentativa. Amet felis sit amet!

Forma et installation magnitudine (unitas: mm)

Motor hastile Modus

Model	Shaft Diameter(mm)	Shaft Extensio (mm)	Shaft Longitudo (mm)
LC57H256	f8	D-cut 0.5x15	21
LC57H265	f8	D-cut 0.5x15	21
LC57H276	f8	D-cut 0.5x15	21
LC57H280	f8	D-cut 0.5x15	21
LC57H2100	f8	D-cut 0.5x15	21

Motor Wiring Diagram

Motor Filum Colorum

Definitiones de Encoder Plumbum Colorum

1	flavum	EB+
2	viridis	EB-
3	nigreos	EA+
4	caeruleum	EA-
5	rubrum	+5VCC
6	album	EGND

Notae

1. Augmenta recte connectuntur dum connectens motore et auriga.
2. Calor manifestus generationis motoris potest accidere sub diversis conditionibus pulsis. Superficiem temperatus of motor 85°C in operatione excedere licet.
3. Motor must be positioned by installation rabbet on front cover of motor, attention shall be paid on error matching, and the concentricity between motor shaft and load shall be controlled strictly.

Applicationem Wiring Diagram

A completum steppr ratio motoris imperium includere debet prduct infra ostensum est
