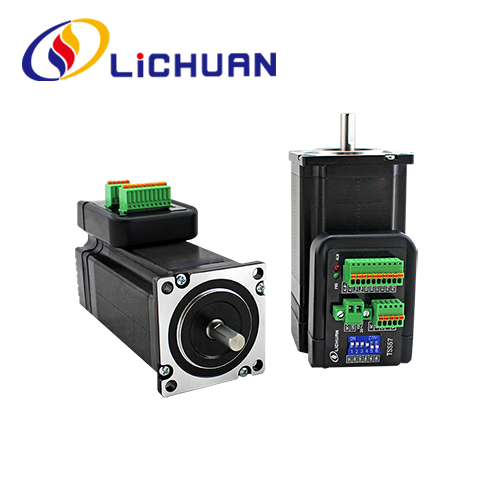

Integrated Nema23 aperta loop stepper motor

depictio producti

LICHUAN® benigne excipe te ad Lupum Integrated Nema23 ansam gradatim apertam motoriam ex officina nostra. Fructus nostri CE certificati sunt et nunc magna moles inventarii officinas habent. Nos tibi praebebunt bona opera et officinas discounted prices

Integrated Nema23 open loop stepper motor Introduction

Integrated Nema23 aperta ansa stepper motoria Adopt provecta alterna technologia currentis, efficaciter reducere calorem Motoris et aurigae Generationis Plus-voltage, under-voltage, over-current and out of error protection functions; Stabilis celeritas, parva LUXURIA et error semita, humilis caloris generatio motoris et exactoris;Singulus/duplex pulsus modus, pulsus efficax ora praesto est, Pulsus, directio et da signum input levels port: 3.6~24V compatible; Vide portum RS232 debugging munus;
Optical coniugator solitudo erroris signum input, fortis anti-impedimenti capacitas; Pulsus numerus cuiuslibet rotundi per debugging programmatis vel horologii (subdivisionis), in microstep subdivisionis algorithm constructus, subdivisio moderaminis ordinem cognosce et effectus operationis altae subdivisionis.

Microstep Subdivision Occasus

Gradus/Turn	SW1	SW2	SW3	SW4
Default	on	on	on	on
800	off	on	on	on
1600	on	off	on	on
3200	off	off	on	on
6400	on	on	off	on
12800	off	on	off	on
25600	on	off	off	on
51200	off	off	off	on
1000	on	on	on	off
2000	off	on	on	off
4000	on	off	on	off
5000	off	off	on	off
8000	on	on	off	off
10000	off	on	off	off
20000	on	off	off	off
40000	off	off	off	off

Electric Parameters

quod	TSS57/TSM57
quod	Min	Type	Max	Unitas
Input voltage	24	36	40	VDC
Coegi current	1		8	A
Input Pulsus Frequentiam	1		200K	HZ
Initus signum voltage	3.6	5	24 (resistentiam coniungere)	VDC
Continua in current	4.5A20KHz PWM
Default Communicationis Celeritas	57.61Kbps
Praesidium Function	1. Per - actionem molem cacumum valorem: 8A±10% 2. Plus voltagium Actionem pretium 60V DC 3. Ex Ero metum limen

Technical data

Series	Gradus Angulum ()	Motor Longitudo (mm)	Tenentes Torque(N.m)	Ratum Current(A)	Rotor Inertia (g.cm²)	Motor Pondus (Kg)	Encoder Consilium(PPR)
TSS57-36V-10	1.8	90	1.0	3.0	300	1.2	1000
TSS57-36V-20	1.8	110	2.0	3.5	500	1.6	1000
TSS57-36V-30	1.8	130	3.0	4.0	720	2.0	1000
TSM57-36V-10	1.8	90	1.0	3.0	300	1.2	Nullus
TSM57-36V-20	1.8	110	2.0	3.5	500	1.6	Nullus
TSM57-36V-30	1.8	130	3.0	4.0	720	2.0	Nullus

Superius sunt producta repraesentativa. Amet felis sit amet!

Forma et installation magnitudine (unitas: mm)

Motor hastile Modus

Model	Shaft Dlameter(mm)	Shaft Extensio (mm)	Shaft Longitudo (mm)
TSS57-36V-10	f8	D-cut 0.5X15	21
TSS57-36V-20	f8	D-cut 0.5X15	21
TSS57-36V-30	f8	D-cut 0.5X15	21
TSM57-36V-10	f8	D-cut 0.5X15	21
TSM57-36V-20	f8	D-cut 0.5X15	21
TSM57-36V-30	f8	D-cut 0.5X15	21
