Lichuan AC Servo Motor Coegi Kit A8 High Accuracy STO ABZ 100W 0.32N.m 220V 1.1A 3000RPM IP65

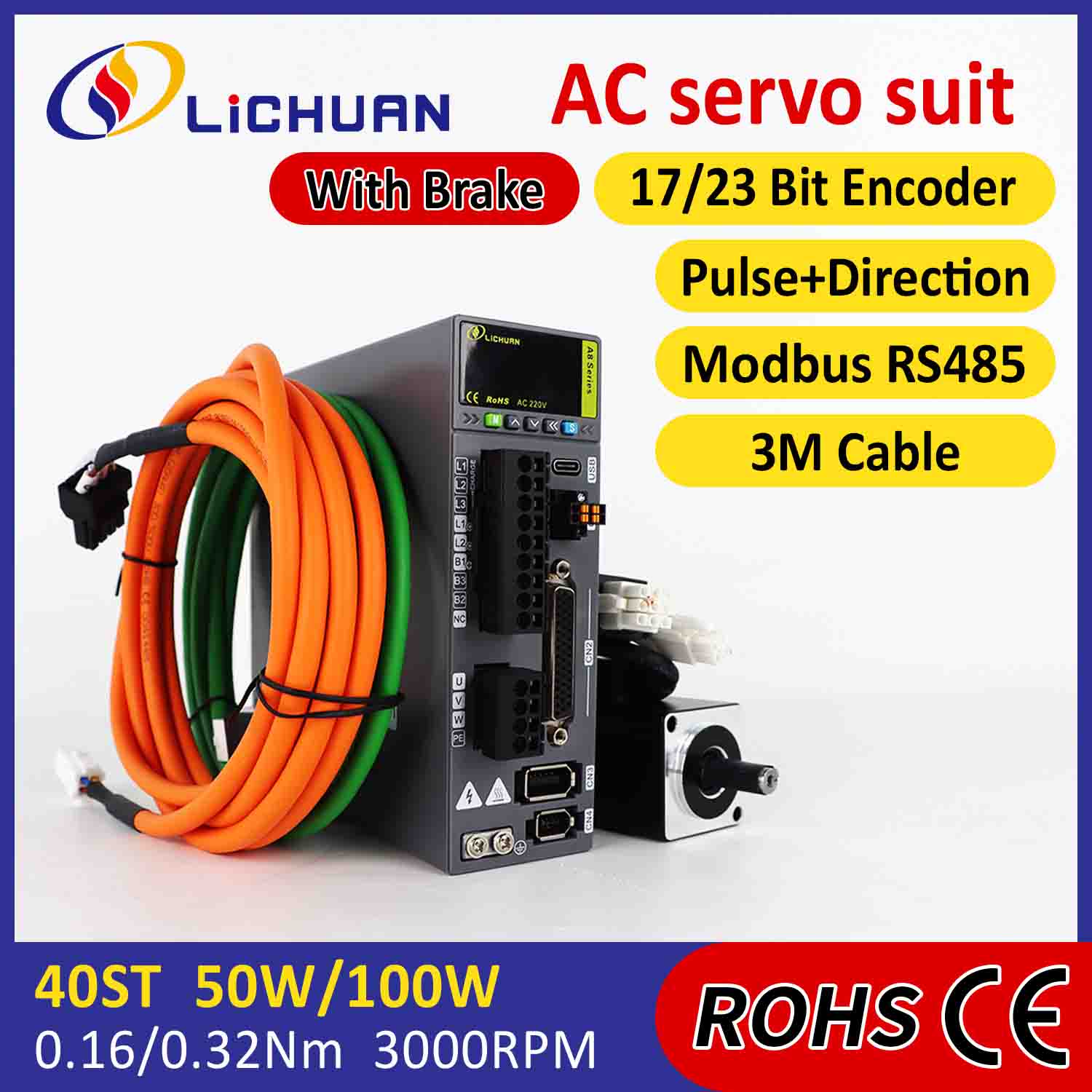

Lichuan AC Servo Motor Coegi Kit A8 High Accuracy STO ABZ 100W 0.32N.m 220V 1.1A 3000RPM IP65 Lichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kit - Subtilitas Motus Imperium pro CNC, Robotics, Automation Systems Lichuan A8 series Servo Motor Coegi commoda: Quisque ornare: 1.instrui possunt c......

Model:A8+100W

Mitte Inquisitionem

depictio producti

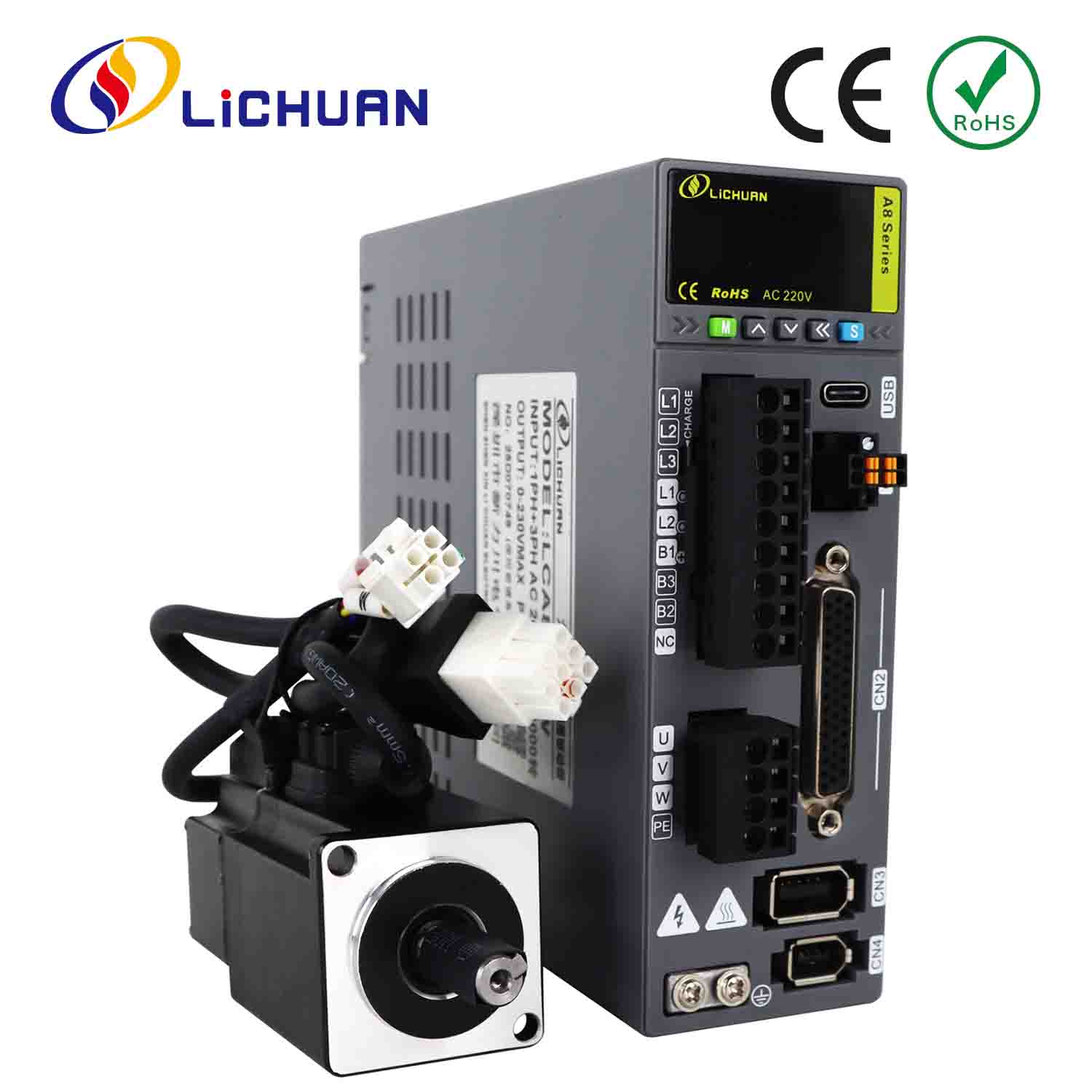

Lichuan AC Servo Motor Coegi Kit A8 High Accuracy STO ABZ 100W 0.32N.m 220V 1.1A 3000RPM IP65

Lichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kit - Subtilitas Motus Imperium pro CNC, Robotics, Automation Systems

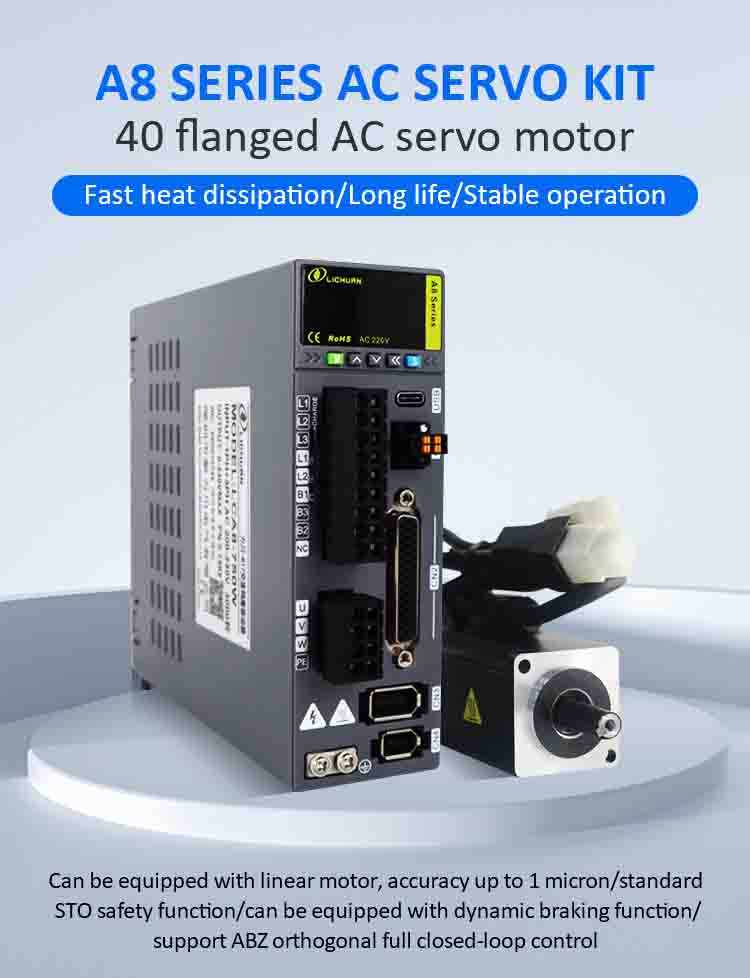

Lichuan A8 series Servo Motor Coegi commoda:

Quisque ornare:

1.instrui possunt cum motoribus linearibus, accurate assequendis usque ad1 micron

2.StandardSTOsalus munus

3.Optional dynamic braking munus ad salutem et fidem

4.SupportsABZquadratura venae plenae clauso-loop control

Munera:

1. Sustentat 17 frenum et 23 frenum incrementale et absolutum encoders.

2.Sustinet 7 modes imperium: positio, celeritas, torques, positio/torque, positio/celeritas, celeritas/torque, et positio/sceler/torque.

3. Interna 24V intentione output: Potestas potestatem DI et Pulsus portuum, removendo necessitatem externae 24V potestatis copia.

4. Sustentat ABZ Phase pulsus frequentiae divisio feedback.

5.16 virtualis DI portus et 16 virtuale D0 portus: Nihil solliciti de insufficiens DI vel D0 portubus cum potestate communicationis utens.

6.16 celeritas interna et 16 segmenta positio interna: operatio cycli automatici praesto est, 485 moderamen communicationis flexibilem faciens.

7.Supports auto-discentiam motoris: adhiberi possunt cum motoribus e diversis artifices.

8.Supports485 bus communicationiscum signo MODBUS RTU protocollo.

9.Analog signum imperium, auxilium initus 2 analog initus, 12-bit resolutio;input range -10 to +10V.

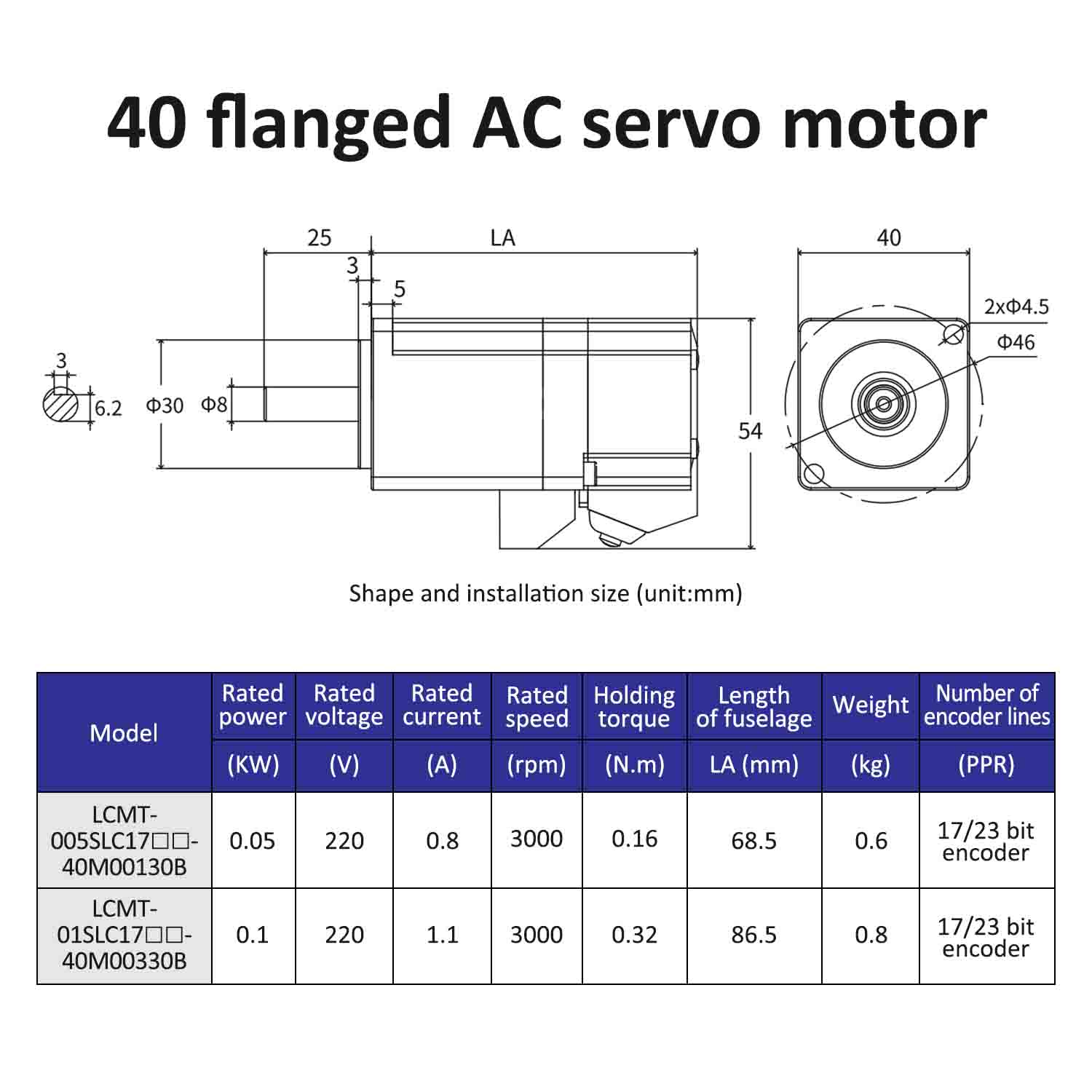

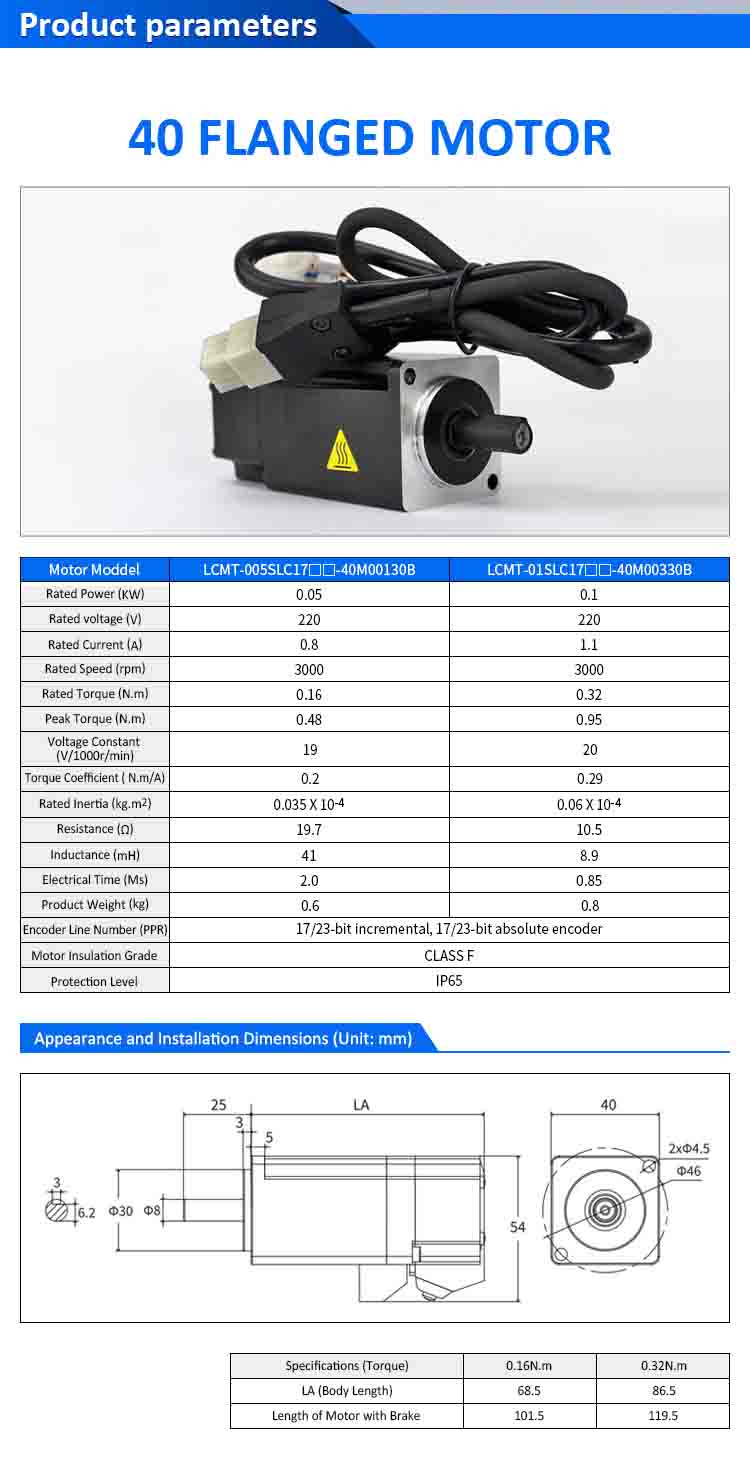

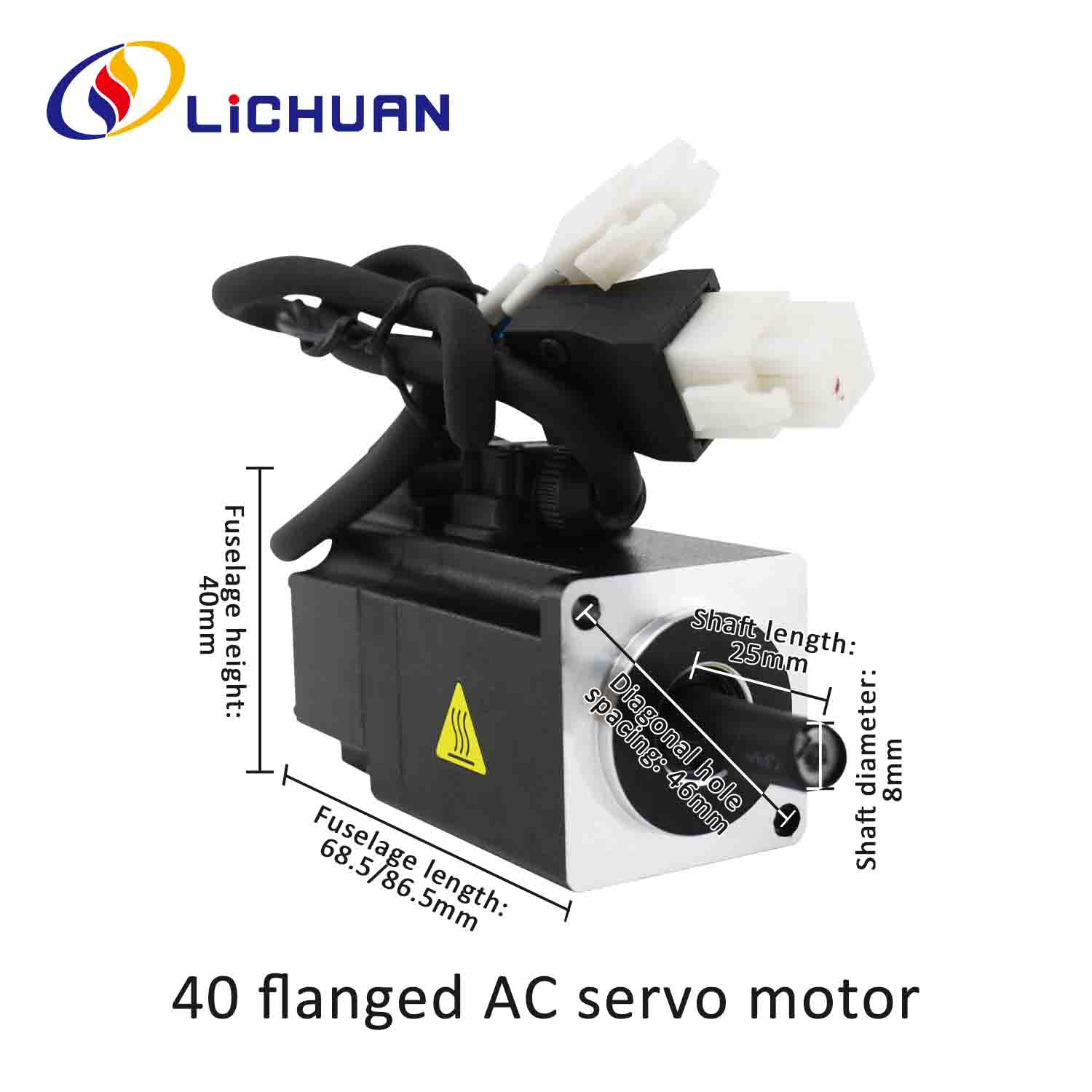

40 flanged MOTOR
Motor Moddel	LCMT-005SLC17-40M00130B	LCMT-01SLC17-40M00330B
Rated Power (KW)	0.05	0.1
Rsted voltage (V)	220	220
Rated Current (A)	0.8	1.1
Celeritate rated (rpm)	3000	3000
Rated Torque (N.m)	0.16	0.32
Peak Torque (N.m)	0.48	0.95
Voltage Constant(V/1000r/min)	19	20
Torque Coefficient (N.m/A)	0.2	0.29
Ratum Inertia (kg.m²)	0.035X10-4	0.06X10-4
Resistentia (Ω)	19.7	10.5
Inductione (mH)	41	8.9
Electrical Time (Ms)	2.0	0.85
Product pondus (kg)	0.6	0.8
Encoder Line Number (PPR)	17/23-bit incrementale, 17/23-bit encoder absolutum
Motor Insulation Grade	ORDO F*
Praesidium Level	IP65

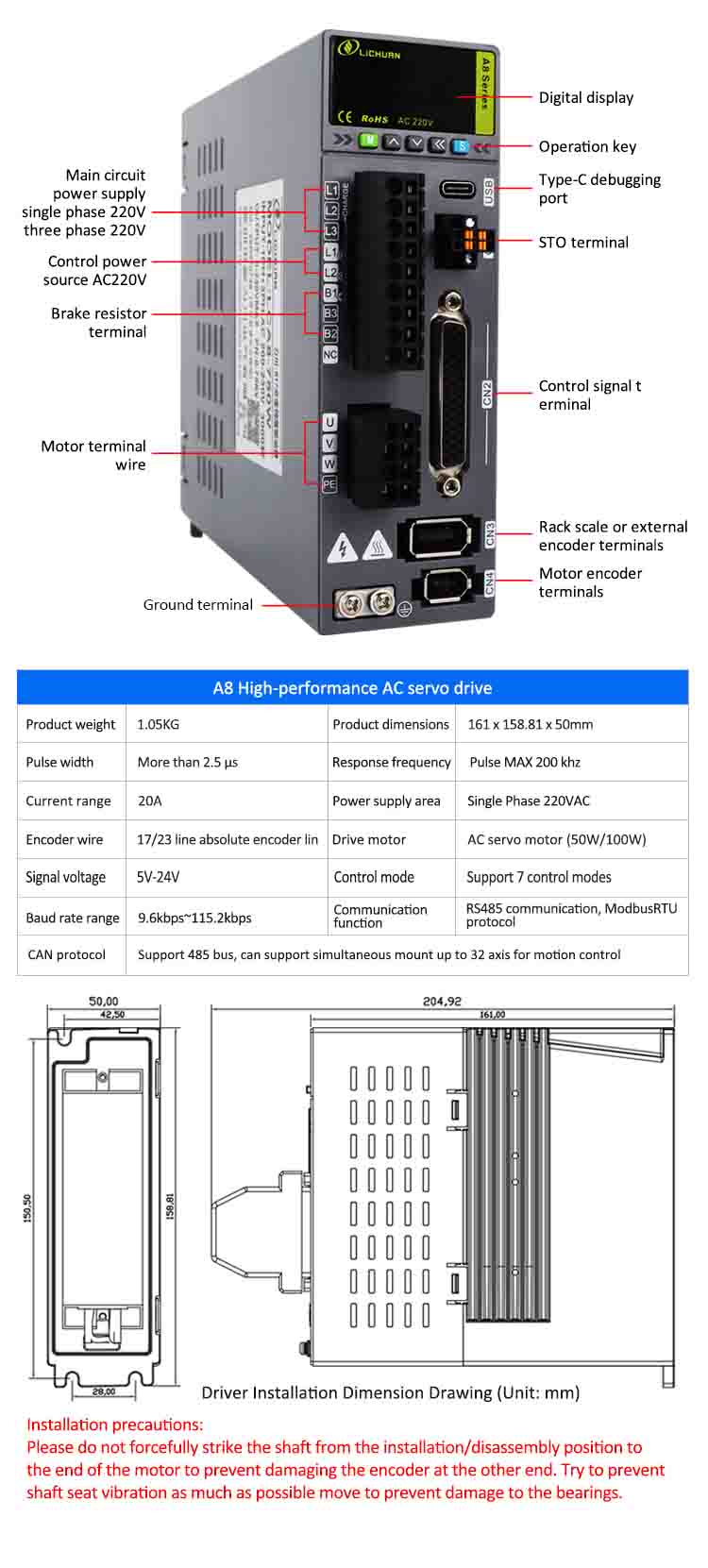

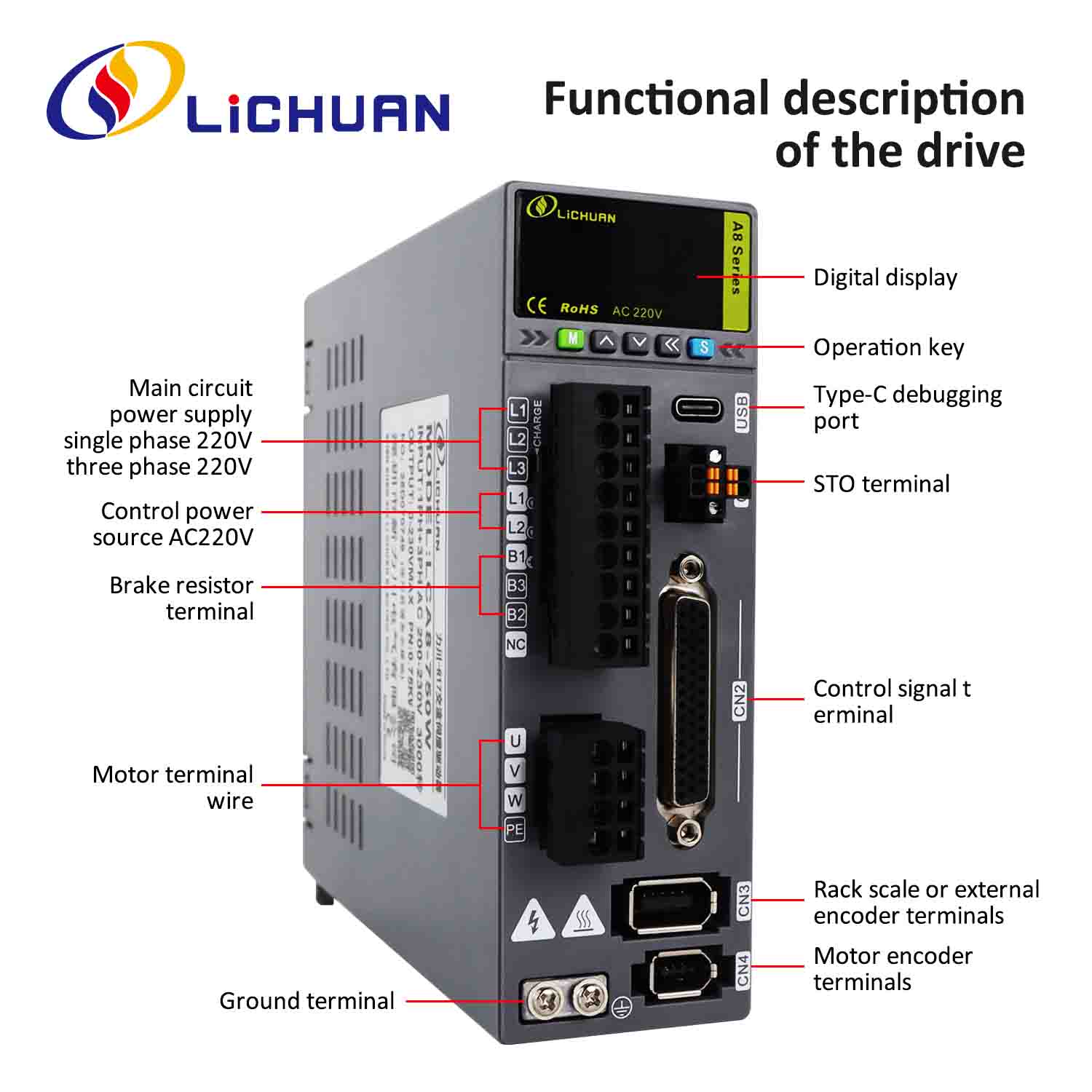

A8 princeps perficientur AC servo coegi
Product pondus	1.05KG	Product dimensiones	161x158.81x50mm
Pulsus latitudo	Plus quam 2.5 us	Responsum frequentia	Pulsus MAX 200 khz
Current range	20A	Potentia copia regio	Unius Phase 220VAC
Encoder filum	17/23 linea absoluta encoder lin	Coegi motricium	AC servo motore (50W/100W)
Signum voltage	5V-24V	Imperium modus	Support VII modi imperium
Baud rate range	9.6kbps~ 115.2kbps	Communicationis munus	RS485 communicatio, ModbusRTU protocol
CAN protocol	Auxilio 485 bus, simultaneum sustentare potest ad axem 32 ad motum imperium

Basic Product Information

Item	Descriptio
Product Name	Lichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kit
Categoria	AC Servo Motor + Servo Coegi + Encoder System
Encoder Type	ABZ Incremental Encoder
Salus Function	STO (tutus Torque Off)
Imperium Modus	Positio / Mobilitate / Torque
Applicationem	CNC, Automation, Robotics, Packaging, Conveying, Electronics Vestibulum
Voltage	AC 220V Single-Phae/Tres-Phase
Potestas Range	50W / 100W / 200W / 400W / 750W (prout exemplar)

Product Specifications Tabula

Specification	Precium
Product Name	Lichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kit
Potentia Optiones	50W / 100W / 200W / 400W / 750W
Voltage	AC 220V
Encoder Type	ABZ Incremental Encoder
PPR (Pulse Per Revolution)	1000-2500 PPR (prout exemplar)
Imperium Modus	Positio / Mobilitate / Torque
Communicationis	Pulsus + Directio / Modbus (prout exemplar)
Salus Function	STO (tutus Torque Off)
Operating Temperature	−10℃ ad +55℃
Praesidium	Overcurrent, Overvoltage, Undervoltage, Overheat
Applications	CNC, Robots, Automationis Lineae, Packaging, Machinae Laser, Delige-et-Place systemata

Product Description

TheLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitsummus praecisio motor incorporat, servo coegi salus auctus, et feedback encoder robustum ABZ. STO functionalitas eius certas facultates shutdown subitis praebet, dum ABZ encoder altas solutionis pulsum opiniones praebet egregia stabilitate.

Hoc facitLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitapta ad motum systematum definitum linearem et gyratorium continentem requirunt responsionem ieiunium, vibrationem humilem, et positionem accuratam.

Product Introduction

TheLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitsummus perficientur motus moderatio integralis solutionis automationis industrialis designatae, machinae CNC, roboticae, lineae sarcinae et systemata fabricandi intelligentes.
Hoc ornamentum deliversaccurata positione feedback, ABZ incremental encoder annuit, STO utilitatis salusetfirmum AC servo incessus perficienturpraestanti celeritate, torque ac diligentia.

Machinator ad longum tempus fides, theLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitnoscitur pro sua valida convenientia, lenis operatio, et cost-perficiendi ratio superior.

Product Features

1. Princeps Accuracy ABZ Encoder videre

Ensures certo loco deprehensio
Pulsus stabilis output pro CNC et motus moderatoris
Error cumulativo reduces et repeatability melius

2. STO Safety Protection

Tutus Torque Off (STO) obsequentem
Immediata torque shutdown in subitis condicionibus
Tuetur operators et apparatu in malfunction

AC Servo Motor

Smooth operatio humilis-celeritate
Celeri dynamic responsionis
Princeps Aureus densitatis et stabilis temperatus imperium

4. Intelligentes Servo Coegi

Plures modi imperium
Auto-tuning function
Inaedificata protectione: superfluentia, super- intentione, onero, culpa encoder

5. Fortis Compatibility

Opera cum moderatoribus communibus CNC, PLC systematibus, et suggestis industrialibus automationibus
Securus integratio in systematibus existentium

6. Long-Vita Reliability

Gradus industrialis gestus, gyros, et velit
Apta 24/7 longi-term operationis

Principia technica

TheLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitfunctiones integrando tres subsystematum praecisiones:

1. Servo Motor

Convertit energiam electricam in motum gyrativum moderatum.

2. AC Servo Coegi

Regulat torque, celeritate, et positione utens intelligentes PID-substructio clausus-loop control algorithmorum.

3. ABZ Encoder

A/B/Z annuit channel pro feedback loramenta praebet, enabling:

Realis temporis positio comparationis
Responsum summus celeritas servandis
Motus ultra lenis

Cum STO machinationes tutae deductae, ratio accuratam, tutam, et clausuram clausorum operationem efficit.

Product Commoda

1. High Sagaciter & stabilitas

ABZ encoder certum motum imperium efficit.

2. Lata Application dolor

TheLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitsubsidia CNC, robotica et automationis industriae.

3. Pretium efficax Industrial Grade SOLUTIO

Perfert altam fidem comparabilem cum facibus summis, pretio magis competitive.

4. Integrated Safety

STO salutem shutdown internationalis vexillum praebet.

5. Securus inaugurare & Tenere

Compacta compages, manifesta wiring layout ac documenta completa.

Applicationem Areas

TheLichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitlate in;

CNC Woodworking Machines
CNC Metal Cutting / Milling
Industriae Robots
Colligunt & Place Automation
Packaging Machines
Typographia & Labeling Equipment
Subtilitas Positioning Platforms
Electronics Productio Linearum
Laser secans / Sculptura Machinis
Conveyor & Sorting Systems

Product Usus Causae / Applications

Princeps praecisione axis imperium
Tabulae rotariae index
XYZ coordinare motus
summus celeritas systemata fusum
Multi-axis robotici articulis
Motus automated imperium machinationes

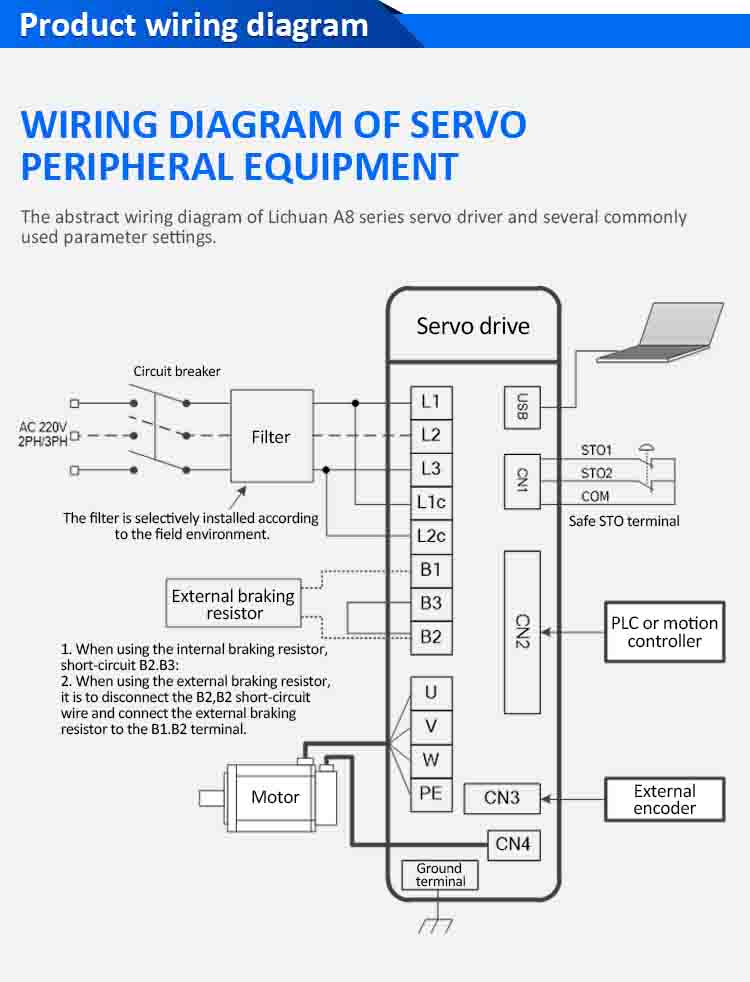

Operans mandatum

1. Iungo Power

AC 220V input.

2. Encoder Connect in cable

Conlineare A/B/Z canales cum auriga input.

3. Configure Servo Coegi Morbi

Utere tabella vel programmate ad componendas torques, velocitates et modos positio.

4. Praestare Auto-Tuning

Optimize motrices perficiendi.

5. Probate Ratio

Motus currunt probat ante apparatum loading.

Cautiones

Unitas ante peractam wiring non potentia.
Ensure grounding to reduce impedimentum.
Acriter inflectere encoder vitare retinacula.
Ab humido et prolixo pulvere abstine.
Ut STO wiring occurrat signa salutis.

Vestibulum Process

Subtilitas rotor coluber
CNC machined habitationi motricium
Encoder calibratiis & signum inspectionis
Coegi ecclesiam sub anti-static environment
Multi-punctum canus test
Final qualis inspectionem

Societas Introductio

Lichuan fabrica professio est in motoribus servo, aurigae servo, et automationis industriae componentibus. Cum continua R&D collocatione et qualitate districta temperantiae, Lichuan fructus globally agnitos praebet, inter quos "Lichuan A8 High Accuracy STO ABZ AC Servo Motor Coegi Kitlate in CNC, roboticis et campis fabricandis intelligentibus.

Quality Assurance

C% plenam inspectionem
Test signum Encoder
Servo exactoris onus test
12-24 mensibus warantia
Technical engineering auxilium

Customer Service

Free technica consultatione
Online fermentum
Institutionem directionem
Fast post-sales responsionis
Altera / ODM customization auxilium

Testimonia

CE Certification
RoHS Obsequium
ISO9001 Quality Management
Electrical Safety Obsequium

FAQ

Q1: Quae applicationes ad Lichuan A8 conveniunt High Accuracy STO ABZ AC Servo Motor Coegi Kit?

Est specimen pro CNC machinis, roboticis, fasciculis, automationibus linearum, ac praecisionis positionis.

Q2: An incremental encoder feedback sustinet?

Etiam, ornamentum summa subtilitate ABZ incremental encoder includit.

Q3: Quae munera salutis continentur?

STO (Tutus Torque Off) subitis shutdown securam praestat.

Q4: Quae potentiae options sunt praesto?

50W ad 750W, secundum applicationem tuam.

Q5: Potestne operari cum moderatoribus communibus cnc?

Ita, cum plerisque CNC, PLC, moderatoris motu, et suggestis industrialibus automationi compatitur.
